Arduino UNO 162u2 Firmware flashing | Using 'FLIP' Softwear

𝐈𝐟 𝐮 𝐖𝐚𝐧𝐭 𝐭𝐨 𝐟𝐥𝐚𝐬𝐡 𝐨𝐫 𝐔𝐩𝐠𝐫𝐚𝐝𝐞 𝟏𝟔𝐮𝟐/𝟖𝐮𝟐 𝐦𝐢𝐜𝐫𝐨𝐜𝐡𝐢𝐩 𝐟𝐢𝐫𝐦𝐰𝐚𝐫𝐞 𝐰𝐡𝐢𝐜𝐡 𝐢𝐬 𝐢𝐧 𝐚 𝐛𝐮𝐢𝐥𝐭-𝐢𝐧 𝐀𝐫𝐝𝐮𝐢𝐧𝐨 𝐔𝐍𝐎 𝐭𝐡𝐞𝐧 𝐭𝐡𝐢𝐬 𝐩𝐨𝐬𝐭 𝐢𝐬 𝐟𝐨𝐫 𝐲𝐨𝐮.


For flash 16u2 microchip firmware you need to two files :

1. 16u2 firmware file

2. "Flip" Software for flashing

STEP - 1

Go to any web browser - [Like chrome, Microsoft edge]. Then search your microchip latest hex file [In my case I want to flash Arduino UNO rev3]"arduino-usbserial-atmega16u2-uno-rev3.hex"

Link : https://github.com/arduino/ArduinoCore-avr/blob/master/firmwares/atmegaxxu2/arduino-usbserial/Arduino-usbserial-atmega16u2-Uno-Rev3.hex

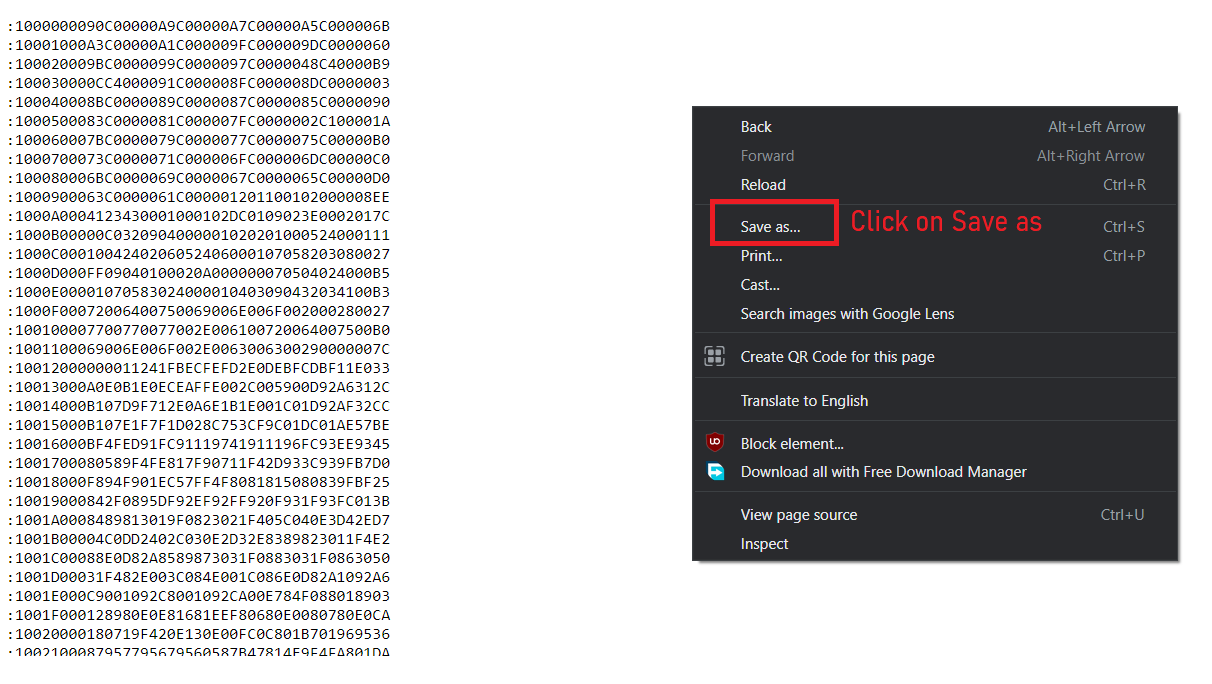

To download the HEX file, opening the Github repository see the upper right corner there is an option 'RAW', click the 'RAW' button, then a new tab opening after that press 'Ctrl+S' from the keyboard and there will be a save as pop up the save the file name as per shown in the third image and don't forget to put .hex extension. Now the hex code is ready.













STEP - 2

Download the  Atmel "FLIP" software.



💛💛Download the All Files Click Here💛💛



Thank you !!!
